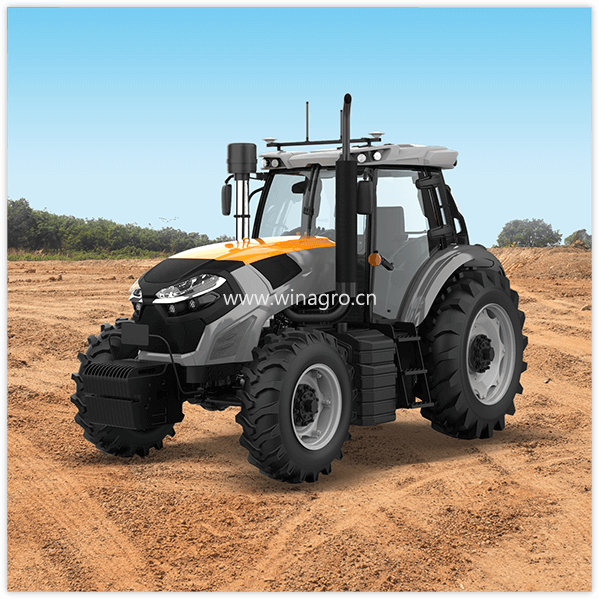

Heavy Tractor (160HP)
Sell tractors of various specifications and horsepower, suitable for various terrains, factory direct sales, product CE, Euro 5 environmental certification, and can be exported to multiple countries and regions.
（Note: Due to continuous product upgrades, all information displayed in this promotional material is for reference only. Please refer to the actual prototype parameters for purchase.）
|
Model
|
1604
|
1804
|
2004
|
|
Dimension (L×W×H)(mm)
|
5275×2404×3143
|
|
Weight (kg)
|
5880
|
|
Counter Weight Mass
Front/Rear(kg)
|
660/480
|
780/480
|
780/480
|
|
Engine
|
Form
|
VerticalSixCylinder, Supercharged inter-cooler
|
|
Rated Power（kw）
|
118
|
132.5
|
147
|
|
Calibration Speed（r/min）
|
2200
|
|
Number Of Transmission Gears(Forward/Reverse)
|
F16/R8
|
|
Speed Range
|
Forward(km/h)
|
1.7-36.39
|
|
Reverse(km/h)
|
2.52-23.28
|
|
Tire Size
|
Tire model (front/rear)
|
Standard：14.9-26 / 18.4-38
Optional：380/70R28 / 480/80R38
14.9-26 / 18.4-38
420/70R28 / 520/70R38
|
|
Front wheel track width (adjustable)（mm）
|
1942、2052
|
|
Rear wheel track width (adjustable)（mm）
|
1930～2050
|
|
Min.Ground Clearance（mm）
|
490
|
|
PTO
|
Form
|
Dry Type, Independent Type
|
|
Output Power（kw）
|
100
|
112.5
|
125
|
|
Speed（r/min)
|
Standard：760/850
Optional：540/1000 or 760/1000
|
|
